Procedural skybox

Download PNG

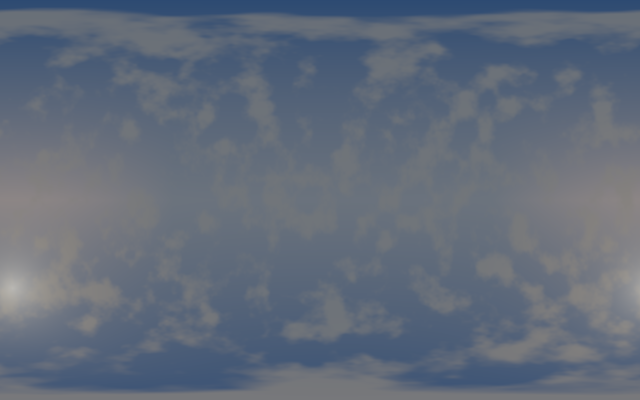

A sky with no texture in it. The fragment shader turns each pixel into a direction on a sphere, rotates that direction slowly, and builds the colour from a zenith-to-horizon gradient, a sun with a glow, clouds from 3D fractal noise, a sunset tint where the view grazes the horizon towards the sun, and a final tone-map. Despite the name there is no cubemap and no sampler; the whole sky is arithmetic.

; Procedural skybox: an animated sky (gradient, sun with glow, fbm noise
; clouds, sunset tint near the horizon, tone-mapped) painted by a fullscreen
; triangle whose fragment shader turns screen UV into a slowly rotating
; spherical view direction. Despite the name there is no cubemap and no
; texture; the sky is entirely procedural. Driven by a pngine-inputs uniform.

(buffer :name uniforms :size 16 :usage [uniform copy-dst])

(queue :name writeUniforms
  (write-buffer :buffer uniforms :offset 0 :data pngine-inputs))

(shader-module :name shader :code """
    struct Uniforms {
      time: f32,
      width: f32,
      height: f32,
      aspect: f32,
    }
    @group(0) @binding(0) var<uniform> u: Uniforms;

    const PI: f32 = 3.14159265359;

    @vertex
    fn vs(@builtin(vertex_index) i: u32) -> @builtin(position) vec4f {
      let x = f32(i & 1u) * 4.0 - 1.0;
      let y = f32((i >> 1u) & 1u) * 4.0 - 1.0;
      return vec4f(x, y, 0.0, 1.0);
    }

    fn hash(p: vec3f) -> f32 {
      var p3 = fract(p * 0.1031);
      p3 += dot(p3, p3.yzx + 33.33);
      return fract((p3.x + p3.y) * p3.z);
    }

    fn noise(p: vec3f) -> f32 {
      let i = floor(p);
      let f = fract(p);
      let u = f * f * (3.0 - 2.0 * f);

      return mix(
        mix(
          mix(hash(i + vec3f(0.0, 0.0, 0.0)), hash(i + vec3f(1.0, 0.0, 0.0)), u.x),
          mix(hash(i + vec3f(0.0, 1.0, 0.0)), hash(i + vec3f(1.0, 1.0, 0.0)), u.x),
          u.y
        ),
        mix(
          mix(hash(i + vec3f(0.0, 0.0, 1.0)), hash(i + vec3f(1.0, 0.0, 1.0)), u.x),
          mix(hash(i + vec3f(0.0, 1.0, 1.0)), hash(i + vec3f(1.0, 1.0, 1.0)), u.x),
          u.y
        ),
        u.z
      );
    }

    fn fbm(p: vec3f) -> f32 {
      var value = 0.0;
      var amplitude = 0.5;
      var freq = 1.0;
      var pos = p;
      for (var i = 0u; i < 4u; i++) {
        value += amplitude * noise(pos * freq);
        amplitude *= 0.5;
        freq *= 2.0;
      }
      return value;
    }

    @fragment
    fn fs(@builtin(position) pos: vec4f) -> @location(0) vec4f {
      let uv = vec2f(pos.x / u.width, 1.0 - pos.y / u.height);

      // Create ray direction (simple spherical projection)
      let phi = uv.x * PI * 2.0;
      let theta = uv.y * PI;
      let dir = vec3f(
        sin(theta) * cos(phi),
        cos(theta),
        sin(theta) * sin(phi)
      );

      // Animated rotation
      let angle = u.time * 0.05;
      let c = cos(angle);
      let s = sin(angle);
      let rotDir = vec3f(
        dir.x * c - dir.z * s,
        dir.y,
        dir.x * s + dir.z * c
      );

      // Sun position
      let sunAngle = u.time * 0.1;
      let sunDir = normalize(vec3f(cos(sunAngle) * 0.5, 0.4 + sin(sunAngle * 0.3) * 0.2, sin(sunAngle) * 0.5));

      // Sky gradient
      let horizon = 1.0 - abs(rotDir.y);
      let skyColor = mix(
        vec3f(0.2, 0.4, 0.8),  // Zenith blue
        vec3f(0.7, 0.8, 0.95), // Horizon light
        pow(horizon, 0.5)
      );

      // Sun
      let sunDist = length(rotDir - sunDir);
      let sun = exp(-sunDist * 8.0) * 1.5;
      let sunGlow = exp(-sunDist * 2.0) * 0.5;

      // Clouds
      let cloudPos = rotDir * 2.0 + vec3f(u.time * 0.02, 0.0, u.time * 0.01);
      let cloudDensity = fbm(cloudPos * 3.0);
      let cloudShape = smoothstep(0.4, 0.7, cloudDensity);

      // Cloud color (lit by sun)
      let cloudSunDot = max(dot(rotDir, sunDir), 0.0);
      let cloudColor = mix(
        vec3f(0.8, 0.85, 0.9),
        vec3f(1.0, 0.95, 0.9),
        cloudSunDot
      );

      // Atmosphere scattering (sunset colors near horizon)
      let sunset = pow(horizon, 2.0) * max(dot(normalize(vec3f(rotDir.x, 0.0, rotDir.z)), sunDir), 0.0);
      let sunsetColor = vec3f(1.0, 0.5, 0.2) * sunset * 0.5;

      // Combine
      var color = skyColor;
      color += sunsetColor;
      color = mix(color, cloudColor, cloudShape * 0.8);
      color += vec3f(1.0, 0.95, 0.8) * sun;
      color += vec3f(1.0, 0.8, 0.5) * sunGlow;

      // Tone mapping
      color = color / (color + vec3f(1.0));

      return vec4f(color, 1.0);
    }
  """)

(render-pipeline :name pipeline
  :layout auto
  (vertex :module shader :entry vs)
  (fragment :module shader :entry fs
    (target :format preferred-canvas-format)))

(bind-group :name bindings :layout pipeline :group 0
  (entry :binding 0 :buffer uniforms))

(render-pass :name mainPass
  (color-attachment :view context-current-texture :clear-value [0 0 0 1] :load-op clear :store-op store)
  :pipeline pipeline
  :bind-groups [bindings]
  (draw :vertex-count 3))

(frame :name main :perform [writeUniforms mainPass])

examples/samples/14_skybox.sjon in the pngine repository.

.sample-source[data-folded] .expressive-code { max-block-size: none !important; mask-image: none !important; } .sample-source[data-folded] .sample-source-more { display: none; }

How it works

The scaffold

The SJON (the S-expression format pngine compiles, one form per WebGPU resource or operation) is the fullscreen scaffold from Gradient background: a 16-byte uniform buffer refilled every frame from pngine-inputs (the built-in time/width/height/aspect source), one shader module, a (render-pipeline …) with :layout auto targeting the canvas format, a bind group, a (render-pass …) drawing three vertices, and a (frame …). Every layer of the sky is WGSL, WebGPU’s shading language, in one fragment function.

From pixel to sky direction

fs maps the pixel to uv with y flipped so 0 is the bottom, then to spherical angles: phi = uv.x · 2π around, theta = uv.y · π from the zenith. dir is the unit vector for those angles, so the canvas is an equirectangular view of the whole sphere. I turn the view slowly, a rotation about y by time * 0.05, so the whole sky drifts past.

Layers of sky

Gradient: horizon = 1 - |dir.y| is 0 at the poles and 1 at the horizon; mix(zenith blue, horizon light, sqrt(horizon)) is the base.
Sun: sunDir circles slowly and bobs; sunDist is the chord to it, and two exponentials exp(-8 d) and exp(-2 d) give the disc and the glow, added in warm whites.
Clouds: fbm is four octaves of 3D value noise (noise interpolates eight corner hashes), sampled at dir * 2 scrolled by time and scaled by 3 inside fbm. smoothstep(0.4, 0.7, density) cuts the cloud shape, and the cloud colour is lit by dot(dir, sunDir).
Sunset: horizon² times how much the horizontal part of dir points at the sun, in orange.
Tone map: color / (color + 1) (Reinhard) compresses the bright sun back into range.

An exercise: delete the tone-map line and look at the sun. Its disc and glow overshoot 1 and clip to a hard-edged white blot; Reinhard was quietly folding that overshoot back into range.

In the specifications

What the sample uses	WebGPU	WGSL
Fullscreen triangle and one draw	`draw()`	`vertex_index`, `position`
Uniform buffer, bind group	`writeBuffer()`, bind group creation	`uniform` address space
Direction and rotation		`sin`, `cos`, `normalize`, vector types and swizzles (`p3.yzx`)
Sun, clouds, sunset		`exp`, `length`, `smoothstep`, `mix`, `pow`, `dot`, `for` statement
Tone mapping		`abs`, component-wise vector arithmetic

Procedural noise shows the noise functions in isolation; Procedural normal mapping uses the 2D version.
Forms: (shader-module …), (render-pass …), (queue …).
