Procedural noise

Download PNG

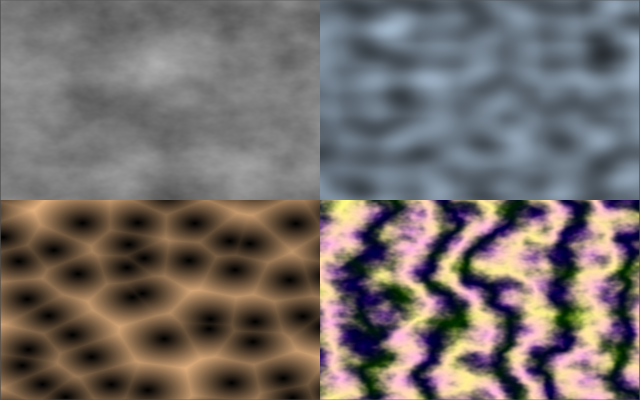

Four noise functions side by side, all computed in the fragment shader from hash functions and scrolled slowly with time. Top left: fractal Brownian motion (five octaves of gradient noise). Top right: a single octave of gradient noise. Bottom left: Worley (cellular) noise. Bottom right: a marble pattern that warps stripes with fbm and tints them with Worley. A thin grey border separates the quadrants.

; Procedural noise: a fullscreen triangle split into four quadrants, each
; showing a different noise: fbm, gradient noise, Worley (cellular) noise, and
; a turbulent marble mixing fbm with Worley. All of it is computed in the
; fragment shader from hash functions; a pngine-inputs uniform scrolls it over
; time.

(shader-module :name shader :code """
    struct Uniforms {
      time: f32,
      width: f32,
      height: f32,
      aspect: f32,
    }
    @group(0) @binding(0) var<uniform> u: Uniforms;

    const PI: f32 = 3.14159265359;

    @vertex
    fn vs(@builtin(vertex_index) i: u32) -> @builtin(position) vec4f {
      let x = f32(i & 1u) * 4.0 - 1.0;
      let y = f32((i >> 1u) & 1u) * 4.0 - 1.0;
      return vec4f(x, y, 0.0, 1.0);
    }

    // Hash functions
    fn hash2(p: vec2f) -> f32 {
      var p3 = fract(vec3f(p.x, p.y, p.x) * 0.13);
      p3 += dot(p3, p3.yzx + 3.333);
      return fract((p3.x + p3.y) * p3.z);
    }

    fn hash2v(p: vec2f) -> vec2f {
      let k = vec2f(0.3183099, 0.3678794);
      var pp = p * k + k.yx;
      return -1.0 + 2.0 * fract(16.0 * k * fract(pp.x * pp.y * (pp.x + pp.y)));
    }

    // Value noise
    fn valueNoise(p: vec2f) -> f32 {
      let i = floor(p);
      let f = fract(p);
      let u = f * f * (3.0 - 2.0 * f);

      return mix(
        mix(hash2(i + vec2f(0.0, 0.0)), hash2(i + vec2f(1.0, 0.0)), u.x),
        mix(hash2(i + vec2f(0.0, 1.0)), hash2(i + vec2f(1.0, 1.0)), u.x),
        u.y
      );
    }

    // Gradient noise (Perlin-like)
    fn gradientNoise(p: vec2f) -> f32 {
      let i = floor(p);
      let f = fract(p);
      let u = f * f * (3.0 - 2.0 * f);

      return mix(
        mix(dot(hash2v(i + vec2f(0.0, 0.0)), f - vec2f(0.0, 0.0)),
            dot(hash2v(i + vec2f(1.0, 0.0)), f - vec2f(1.0, 0.0)), u.x),
        mix(dot(hash2v(i + vec2f(0.0, 1.0)), f - vec2f(0.0, 1.0)),
            dot(hash2v(i + vec2f(1.0, 1.0)), f - vec2f(1.0, 1.0)), u.x),
        u.y
      ) * 0.5 + 0.5;
    }

    // Worley (cellular) noise
    fn worleyNoise(p: vec2f) -> f32 {
      let n = floor(p);
      let f = fract(p);

      var minDist = 1.0;

      for (var j = -1; j <= 1; j++) {
        for (var i = -1; i <= 1; i++) {
          let g = vec2f(f32(i), f32(j));
          let cellHash = n + g;
          let o = vec2f(hash2(cellHash), hash2(cellHash + vec2f(7.0, 13.0)));
          let r = g + o - f;
          minDist = min(minDist, dot(r, r));
        }
      }

      return sqrt(minDist);
    }

    // FBM
    fn fbm(p: vec2f, octaves: i32) -> f32 {
      var value = 0.0;
      var amplitude = 0.5;
      var frequency = 1.0;
      var pp = p;

      for (var i = 0; i < 6; i++) {
        if (i >= octaves) { break; }
        value += amplitude * gradientNoise(pp * frequency);
        amplitude *= 0.5;
        frequency *= 2.0;
      }

      return value;
    }

    @fragment
    fn fs(@builtin(position) pos: vec4f) -> @location(0) vec4f {
      let uv = vec2f(pos.x / u.width, pos.y / u.height);
      let t = u.time * 0.2;

      // Divide screen into 4 quadrants showing different noise types
      let quadX = select(0, 1, uv.x > 0.5);
      let quadY = select(0, 1, uv.y > 0.5);
      let quad = quadY * 2 + quadX;

      let localUV = fract(uv * 2.0) * 4.0 + vec2f(t * 0.5, t * 0.3);

      var value = 0.0;
      var color = vec3f(0.0);

      if (quad == 0) {
        // Value noise FBM
        value = fbm(localUV, 5);
        color = vec3f(value);
      } else if (quad == 1) {
        // Gradient noise
        value = gradientNoise(localUV * 2.0);
        color = vec3f(value * 0.8, value * 0.9, value);
      } else if (quad == 2) {
        // Worley noise
        value = worleyNoise(localUV * 1.5);
        color = vec3f(value * 0.9, value * 0.7, value * 0.5);
      } else {
        // Combined: turbulent marble
        let marble = sin((uv.x * 20.0 + fbm(localUV, 5) * 8.0) * PI);
        let worley = worleyNoise(localUV * 2.0);

        color = vec3f(
          marble * 0.5 + 0.5,
          marble * 0.4 + 0.3 + worley * 0.3,
          marble * 0.3 + 0.2 + (1.0 - worley) * 0.4
        );
      }

      // Add subtle borders between quadrants
      let borderX = smoothstep(0.498, 0.5, abs(uv.x - 0.5));
      let borderY = smoothstep(0.498, 0.5, abs(uv.y - 0.5));
      let border = max(borderX, borderY);
      color = mix(color, vec3f(0.3), border);

      return vec4f(color, 1.0);
    }
  """)

(render-pipeline :name pipeline
  :layout auto
  (vertex :module shader :entry vs)
  (fragment :module shader :entry fs
    (target :format preferred-canvas-format)))

(buffer :name uniforms :size 16 :usage [uniform copy-dst])

(queue :name writeUniforms
  (write-buffer :buffer uniforms :offset 0 :data pngine-inputs))

(bind-group :name bindings :layout pipeline :group 0
  (entry :binding 0 :buffer uniforms))

(render-pass :name mainPass
  (color-attachment :view context-current-texture :clear-value [0 0 0 1] :load-op clear :store-op store)
  :pipeline pipeline
  :bind-groups [bindings]
  (draw :vertex-count 3))

(frame :name main :perform [writeUniforms mainPass])

examples/samples/23_procedural_noise.sjon in the pngine repository.

.sample-source[data-folded] .expressive-code { max-block-size: none !important; mask-image: none !important; } .sample-source[data-folded] .sample-source-more { display: none; }

How it works

The scaffold

The fullscreen scaffold from Gradient background, in SJON, the S-expression format pngine compiles, each form one WebGPU resource or operation: one shader module, a (render-pipeline …) with :layout auto targeting the canvas format, a 16-byte uniform buffer refilled every frame from pngine-inputs (the built-in time/width/height/aspect source), a bind group, a (render-pass …) drawing three vertices, and a (frame …). All four noises are WGSL, WebGPU’s shading language, built from nothing but hash functions.

The noises

hash2 and hash2v are the primitives: a scalar in [0, 1] and a 2D vector in [-1, 1] from a position, via fract of products of large constants. They are deterministic, so the picture is stable from frame to frame and only the scroll moves it.
valueNoise (declared, not shown in any quadrant) interpolates corner hashes with a smoothstep weight.
gradientNoise is Perlin-style: at each cell corner, dot the corner’s random gradient with the offset to the point, then interpolate; the result is remapped from [-1, 1] to [0, 1].
worleyNoise scatters one feature point per cell (hash2 twice), scans the 3×3 neighbourhood, and returns the distance to the nearest one: small near the points, larger in between, which reads as cells.
fbm sums octaves of gradientNoise, halving the amplitude and doubling the frequency each time; the octave count is a parameter, and I bound the loop at six with a break when the count is reached.

An exercise: valueNoise is declared and never called. Swap it in for gradientNoise inside fbm and compare the top-left quadrant: value noise carries the grid it is built on, and gradient noise is the cure for exactly that.

The quadrants

fs decides the quadrant with select on uv > 0.5, and rebuilds a local uv per quadrant with fract(uv * 2) * 4, offset by time so each panel scrolls. The marble is sin((uv.x · 20 + fbm · 8) π): straight stripes displaced by noise, coloured with a Worley term in the green and blue channels. Borders come from smoothstep(0.498, 0.5, |uv - 0.5|) on each axis, mixed to grey.

In the specifications

What the sample uses	WebGPU	WGSL
Fullscreen triangle and one draw	`draw()`	`vertex_index`, `position`
Uniform buffer, bind group	`writeBuffer()`, bind group creation	`uniform` address space
Hashing and interpolation		`fract`, `floor`, `dot`, `mix`, swizzles (`p3.yzx`, `k.yx`)
Cellular search		`for` statement, `min`, `sqrt`, `break` statement
Quadrant selection and borders		`select`, `smoothstep`, `abs`, `sin`

Procedural normal mapping and Procedural skybox use the same value-noise fbm to shade a surface and to shape clouds.
Forms: (shader-module …), (render-pass …), (queue …).
