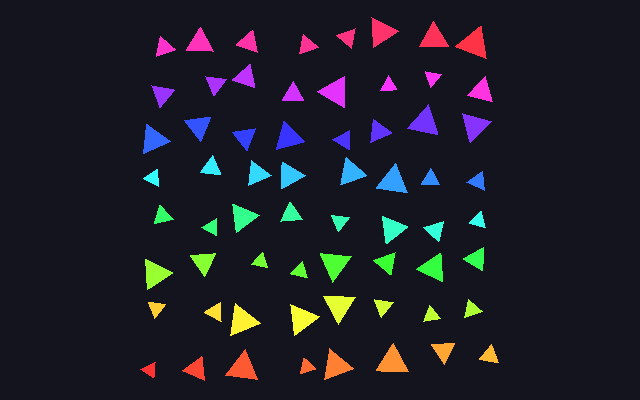

One triangle, drawn 64 times in a single draw call. The mesh is three vertices in one buffer; a second buffer holds one record per instance (position, scale, rotation, colour), and the pipeline declares that its attributes advance per instance rather than per vertex. That second buffer is never written from the document: a compute shader fills it once, before the first frame, so the layout logic lives on the GPU too. I tie each triangle’s spin to its size, so the big ones turn faster.

; Multiple triangles: 64 instanced triangles on a jittered 8×8 grid, each with
; its own scale, rotation and rainbow colour, spinning at a rate tied to its
; size. A compute `(init …)` seeds the instance buffer once; the render pass
; draws it instanced from a per-vertex triangle buffer plus a per-instance
; buffer (`:step-mode instance`), animated by a pngine-inputs uniform.
; No `(primitive …)` form: the defaults are what it needs.

(define :name NUM_TRIANGLES :value 64)

(shader-module :name initShader :code """
struct Triangle {
  pos: vec2f,
  scale: f32,
  rotation: f32,
  color: vec3f,
  pad: f32,
}
struct Triangles { data: array<Triangle> }

@binding(0) @group(0) var<storage, read_write> triangles: Triangles;

fn hash(n: u32) -> f32 {
  var x = n;
  x = ((x >> 16u) ^ x) * 0x45d9f3bu;
  x = ((x >> 16u) ^ x) * 0x45d9f3bu;
  x = (x >> 16u) ^ x;
  return f32(x) / f32(0xffffffffu);
}

const NUM: u32 = 64u;
const PI: f32 = 3.14159265359;

@compute @workgroup_size(64)
fn main(@builtin(global_invocation_id) id: vec3u) {
  let i = id.x;
  if (i >= NUM) { return; }

  // Grid layout with jitter
  let cols = 8u;
  let row = i / cols;
  let col = i % cols;

  let baseX = (f32(col) / f32(cols - 1u)) * 1.6 - 0.8;
  let baseY = (f32(row) / f32(cols - 1u)) * 1.6 - 0.8;

  triangles.data[i].pos = vec2f(
    baseX + (hash(i * 7u) - 0.5) * 0.1,
    baseY + (hash(i * 11u) - 0.5) * 0.1
  );
  triangles.data[i].scale = 0.05 + hash(i * 13u) * 0.05;
  triangles.data[i].rotation = hash(i * 17u) * PI * 2.0;

  // Rainbow colors
  let hue = f32(i) / f32(NUM);
  let h = hue * 6.0;
  let c = 0.8;
  let x = c * (1.0 - abs(fract(h / 2.0) * 2.0 - 1.0));

  var rgb = vec3f(0.0);
  let hi = u32(h) % 6u;
  if (hi == 0u) { rgb = vec3f(c, x, 0.0); }
  else if (hi == 1u) { rgb = vec3f(x, c, 0.0); }
  else if (hi == 2u) { rgb = vec3f(0.0, c, x); }
  else if (hi == 3u) { rgb = vec3f(0.0, x, c); }
  else if (hi == 4u) { rgb = vec3f(x, 0.0, c); }
  else { rgb = vec3f(c, 0.0, x); }

  triangles.data[i].color = rgb + 0.2;
  triangles.data[i].pad = 0.0;
}
""")

(shader-module :name renderShader :code """
struct Uniforms {
  time: f32,
  width: f32,
  height: f32,
  aspect: f32,
}
@group(0) @binding(0) var<uniform> u: Uniforms;

struct VertexOutput {
  @builtin(position) pos: vec4f,
  @location(0) color: vec3f,
}

@vertex
fn vs(
  @location(0) vertex: vec2f,
  @location(1) instPos: vec2f,
  @location(2) instScale: f32,
  @location(3) instRotation: f32,
  @location(4) instColor: vec3f,
  @location(5) pad: f32
) -> VertexOutput {
  // Animate rotation
  let angle = instRotation + u.time * (0.5 + instScale * 2.0);
  let c = cos(angle);
  let s = sin(angle);

  var pos = vertex * instScale;
  pos = vec2f(pos.x * c - pos.y * s, pos.x * s + pos.y * c);
  pos += instPos;

  // Aspect ratio correction
  pos.x /= u.aspect;

  var out: VertexOutput;
  out.pos = vec4f(pos, 0.0, 1.0);
  out.color = instColor;
  return out;
}

@fragment
fn fs(in: VertexOutput) -> @location(0) vec4f {
  return vec4f(in.color, 1.0);
}
""")

; Triangle vertices (one equilateral triangle, drawn per instance).
(data :name vertexData :float32 [
  0.0 1.0
  -0.866 -0.5
  0.866 -0.5
])

(buffer :name vertexBuffer :usage [vertex]
  :data vertexData)

; Instance data: pos(2) scale(1) rotation(1) color(3) pad(1) = 8 floats (32
; bytes) × 64 triangles. Seeded by the init compute shader (storage), consumed
; as an instance-step vertex buffer.
(buffer :name instanceBuffer :size (* NUM_TRIANGLES 8 4) :usage [vertex storage])

(buffer :name uniforms :size 16 :usage [uniform copy-dst])

(queue :name writeUniforms
  (write-buffer :buffer uniforms :offset 0 :data pngine-inputs))

(init :name initTriangles :buffer instanceBuffer :module initShader :workgroups [1])

(render-pipeline :name renderPipeline
  :layout auto
  (vertex :module renderShader :entry vs
    (vertex-buffer :array-stride 8 :step-mode vertex
      (attribute :shader-location 0 :offset 0 :format float32x2))
    (vertex-buffer :array-stride 32 :step-mode instance
      (attribute :shader-location 1 :offset 0 :format float32x2)
      (attribute :shader-location 2 :offset 8 :format float32)
      (attribute :shader-location 3 :offset 12 :format float32)
      (attribute :shader-location 4 :offset 16 :format float32x3)
      (attribute :shader-location 5 :offset 28 :format float32)))
  (fragment :module renderShader :entry fs
    (target :format preferred-canvas-format)))

(bind-group :name uniformsBindGroup :layout renderPipeline :group 0
  (entry :binding 0 :buffer uniforms))

(render-pass :name mainPass
  (color-attachment :view context-current-texture :clear-value [0.08 0.08 0.12 1] :load-op clear :store-op store)
  :pipeline renderPipeline
  :vertex-buffers [vertexBuffer instanceBuffer]
  :bind-groups [uniformsBindGroup]
  (draw :vertex-count 3 :instance-count NUM_TRIANGLES))

(frame :name main :init [initTriangles] :perform [writeUniforms mainPass])

examples/samples/06_multiple_triangles.sjon in the pngine repository.

.sample-source[data-folded] .expressive-code { max-block-size: none !important; mask-image: none !important; } .sample-source[data-folded] .sample-source-more { display: none; }

How it works

Two vertex buffers, two step modes

Everything here is SJON, the S-expression format pngine compiles, one form per WebGPU resource or operation, with the shaders inside as plain WGSL, WebGPU’s shading language; the form doing the new work is the pipeline’s (vertex …) stage, which lists two (vertex-buffer …) layouts. The first, (vertex-buffer :array-stride 8 :step-mode vertex …), is the triangle: float32x2 positions, one per vertex. The second, (vertex-buffer :array-stride 32 :step-mode instance …), is the instance record, five attributes at offsets 0, 8, 12, 16 and 28 filling @location(1) to @location(5). With :step-mode instance, WebGPU advances that buffer once per instance instead of once per vertex, so all three vertices of triangle i see instance i’s record. (draw :vertex-count 3 :instance-count NUM_TRIANGLES) then draws 3 × 64 vertices; NUM_TRIANGLES is a (define …) constant, usable bare in any numeric slot.

The instance buffer is born on the GPU

(buffer :name instanceBuffer :size (* NUM_TRIANGLES 8 4) :usage [vertex storage]) has both usages: STORAGE so a compute shader can write it, VERTEX so the render pass can read it. (init :name initTriangles :buffer instanceBuffer :module initShader :workgroups [1]) is sugar for a compute pipeline, bind group and pass that run once; (frame :name main :init [initTriangles] …) places them before the first frame. initShader writes a Triangle struct per thread: an 8×8 grid position with a hashed jitter, a hashed scale and rotation, and a rainbow colour from the index. One workgroup of 64 threads covers all 64 records.

The instance record is described twice, once by the WGSL Triangle struct the compute shader writes and once by the vertex layout the pipeline reads, and the two descriptions of the same 32 bytes have to agree:

one Triangle record, 32 bytes (:array-stride 32)

byte      0      4      8      12     16     20     24     28     32
          +------+------+------+------+------+------+------+------+
          |pos.x |pos.y |scale | rot  |  r   |  g   |  b   | pad  |
          +------+------+------+------+------+------+------+------+
WGSL       '-- vec2f --' f32    f32   '------ vec3f ------' f32
attribute  float32x2 :0  f32 :8 f32 :12  float32x3 :16      f32 :28

vec3f aligns to 16, which is why color sits at byte 16 rather than 12 and why the struct ends in an explicit pad.

An exercise: raise NUM_TRIANGLES to 128. The buffer size and the draw follow the define on their own; the init pass does not, until its :workgroups [1] becomes [2], because one workgroup is 64 threads and 64 threads write 64 records.

Animation

vs rotates the vertex by instRotation + time * (0.5 + 2 · instScale), so big triangles spin faster, scales and offsets it, and divides x by the aspect ratio from pngine-inputs (the built-in time/width/height/aspect source, written to the uniform buffer each frame) so the triangles stay equilateral on the wide canvas.

In the specifications

What the sample uses	WebGPU	WGSL
Instanced drawing	`draw(vertexCount, instanceCount)`, `GPUVertexStepMode`, `"instance"`	`@location` inputs
Two vertex buffer layouts	vertex state, `GPUVertexBufferLayout`, `GPUVertexAttribute`	structure member layout, alignment and size
A buffer that is both storage and vertex	buffer usage, `STORAGE`, `VERTEX`	`storage` address space, runtime-sized arrays
The one-shot compute fill	compute pipelines, `dispatchWorkgroups()`	`@compute`, `@workgroup_size`, `global_invocation_id`
Hashing and colour		bit expressions (`>>`, `^`), integer types, `fract`, `abs`

Sprite rendering and UI elements instance quads the same way; Instanced trees and Multiple objects do it in 3D with a depth buffer.
Upstream: the WebGPU Samples instancedCube sample covers the same idea with a uniform array of matrices instead of an instance-step buffer.
Forms: (define …), (init …), (buffer …), (render-pipeline …).
